Chat on Whatsapp Description
Key Advantages & System Highlights

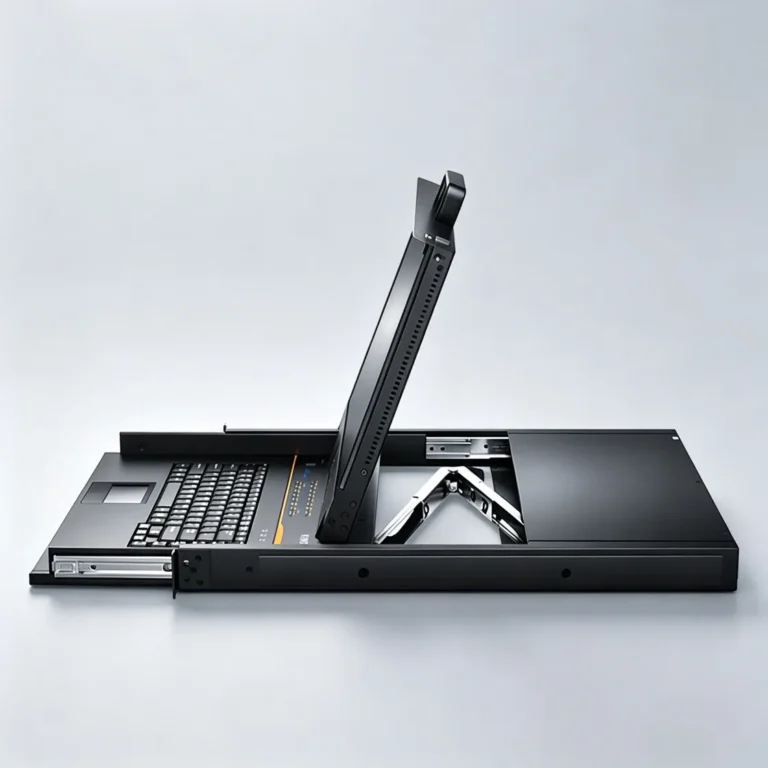

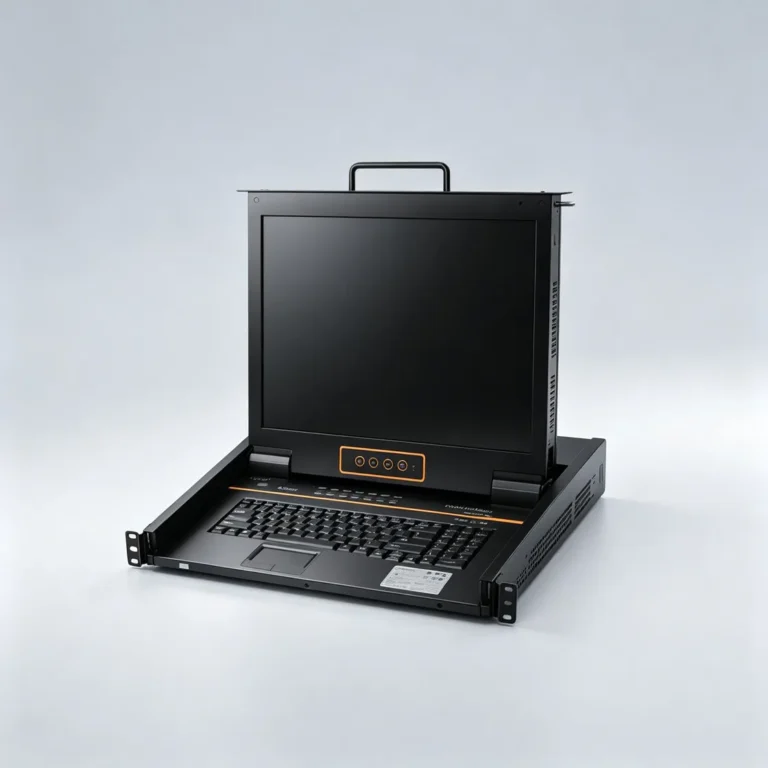

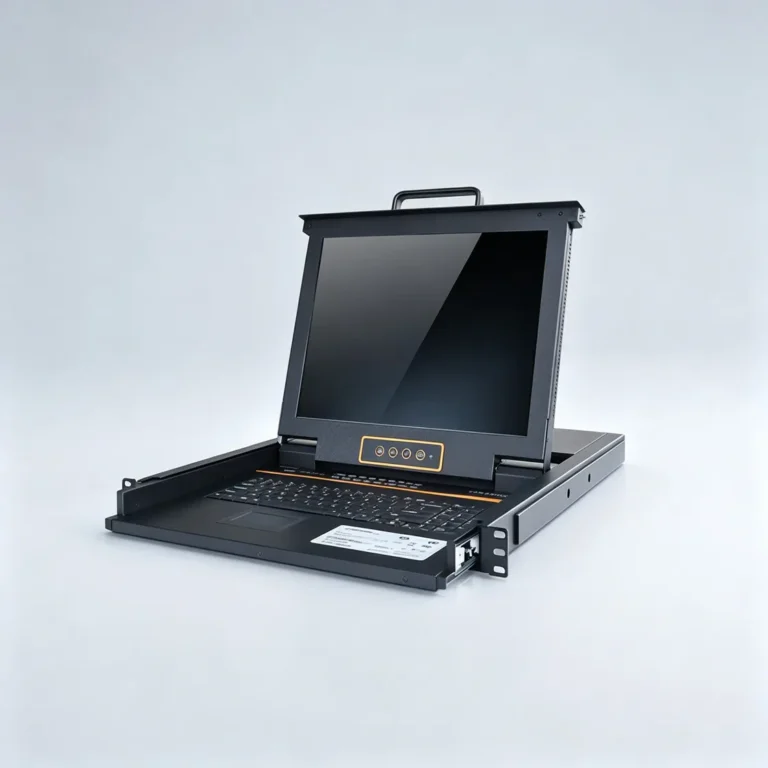

Integrated 1U Design
The series combines a 17-inch LCD monitor, keyboard, touchpad, and KVM switch in a compact 1U rackmount design. It helps operators manage multiple servers directly from the rack while saving valuable cabinet space in Dubai data centers, server rooms, and enterprise IT environments
Local & Remote Access in Dubai
With 1 local user and 1 remote user access, the series supports on-site maintenance and remote server management. Operators can manage connected servers locally or remotely over IP for daily operations, troubleshooting, and emergency response.
Cat5 Cabling
Cat5e/6 cabling with RJ-45 ports simplifies server connections and reduces rack cable clutter. Support for VGA, DVI, HDMI, and DisplayPort interface modules makes the system suitable for mixed IT environments.
Secure HD Control
Remote access supports resolutions up to 1920 × 1080 @ 60Hz for clear and responsive server control. Encryption, user permissions, strong passwords, and event logging provide additional security for remote infrastructure management.>
Product Features for Dubai IT Infrastructure
Hardware Features
- 17” & 19” TFT LCD monitor with high-definition resolution
- Compact 1U EIA rack-mountable design
- Full-size keyboard with integrated number pad
- Integrated trackball eliminates the need for an external mouse
- Dual power supply
Local Console
- Controls up to 24 computers from one console
- Supports 1 local and 1 remote user with simultaneous server access
- Browser UI, hotkeys, and pushbuttons for easy switching
- Supports VGA, DVI, HDMI, and DisplayPort servers
- Compatible with Windows, Linux, Unix, Mac, Solaris, Redhat, and Ubuntu
- Unified management through Local Console, Browser, and AP GUIs
- Local resolution up to 1280 × 1024 @ 60Hz
- Mouse synchronization between local and remote consoles
- EDID support for optimized video resolution
- Keyboard and mouse emulation for reliable server booting
- Auto-scan for monitoring selected computers
- Hot-pluggable design for adding or removing computers without powering down
Remote Console
- Adaptive 10/100/1000 Mbps network connectivity
- Web browser-based remote management
- Remote resolution up to 1920 × 1080 @ 60Hz
- BIOS-level access for remote server management
- Adjustable video quality and tolerance with speeds up to 30 FPS
- Full-screen or scalable video display
- Simultaneous local and remote server control
- AES, DES, and 3DES encryption
- Audit, system log, and operation log functions
- Exit Macro support
- Configurable user and group permissions
- Strong password support
- Firmware upgrade capability
Package Contents for Dubai Deployments
- 1× HT1708 LCD KVM over IP Switch
- 1× Regional Power Cord
- 1× Quick Start Guide
- 1× User Manual
- 2× Mounting Rails
- 1× Cat5 Shielded Network Cable
- 1× Ground Lead

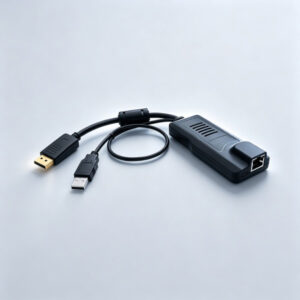

USB DisplayPort KVM Adapter

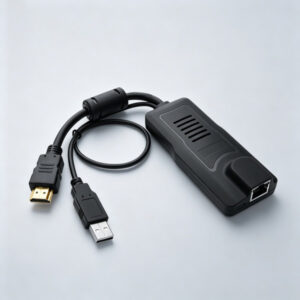

USB HDMI® KVM Adapter

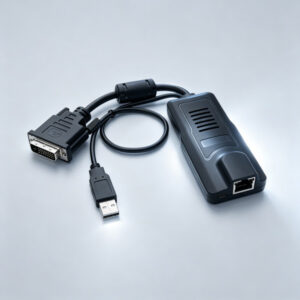

USB DVI KVM Adapter

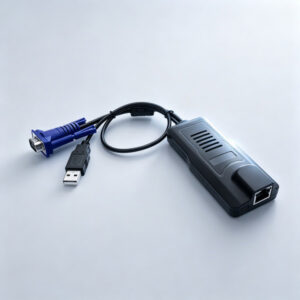

USB VGA KVM Adapter

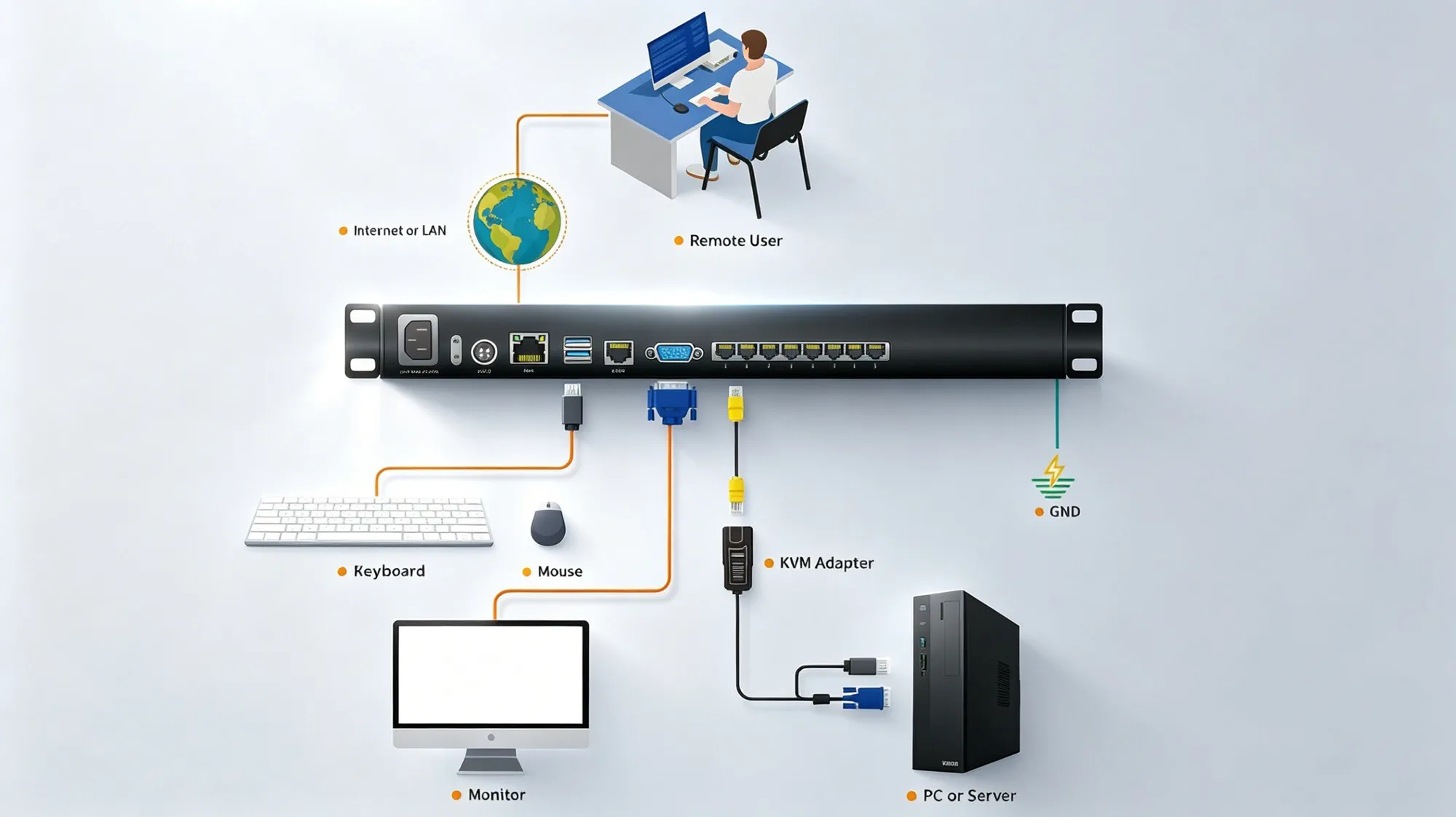

Connection Diagram
Resources Download
