Key Advantages & System Highlights for Dubai
Easy Fit & Installation
Flexible, modular design with magnetic mounting makes installation and adaptation easy across different cabinet types. Its compact design saves space and supports fast deployment in data centers, telecom rooms, and server cabinets across Dubai and the UAE.
Easy Mounting & Reliable Signal
Magnetic mounting enables quick installation and maintenance, while the contact-based tag design avoids wireless signal interference. Gold-plated contact points help prevent oxidation and maintain stable, reliable communication.
Smart Management
- Supports door magnetic switch data collection.
- Multiple modules can be connected in series to reduce cable length.
Product Features & Technical Specifications
Fast Identification
Millisecond-level U-position identification enables real-time asset tracking and accurate asset status updates.
Easy Setup
A web-based configuration platform supports remote setup, online configuration, and IP whitelist management for improved security.
Wide Environment Range
Supports stable operation from -10°C to 50°C and humidity levels from 5% to 95% RH.
Auto Inventory
Automated millisecond-level asset inventory reduces manual workload, improves accuracy, and minimizes human errors.
Platform Integration
Supports third-party platform integration through HTTP northbound interface and Modbus RTU protocol interface.
Space Optimization
Real-time U-position monitoring helps optimize rack space and improve overall data center utilization.
AC/DC Power
Supports AC and DC dual power supply with wide-voltage input for flexible deployment.
Low Power Use
A 47U rack-mounted U-position electronic tag consumes approximately 125 mA, supporting efficient plug-and-play deployment.
Lifecycle Management
Real-time asset monitoring and data upload support the complete equipment lifecycle, including check-in, check-out, relocation, inventory, maintenance, decommissioning, and alarms.
Precision Monitoring
Optional temperature and humidity asset tags provide high-precision monitoring with ±1°C temperature accuracy and ±5% humidity accuracy.

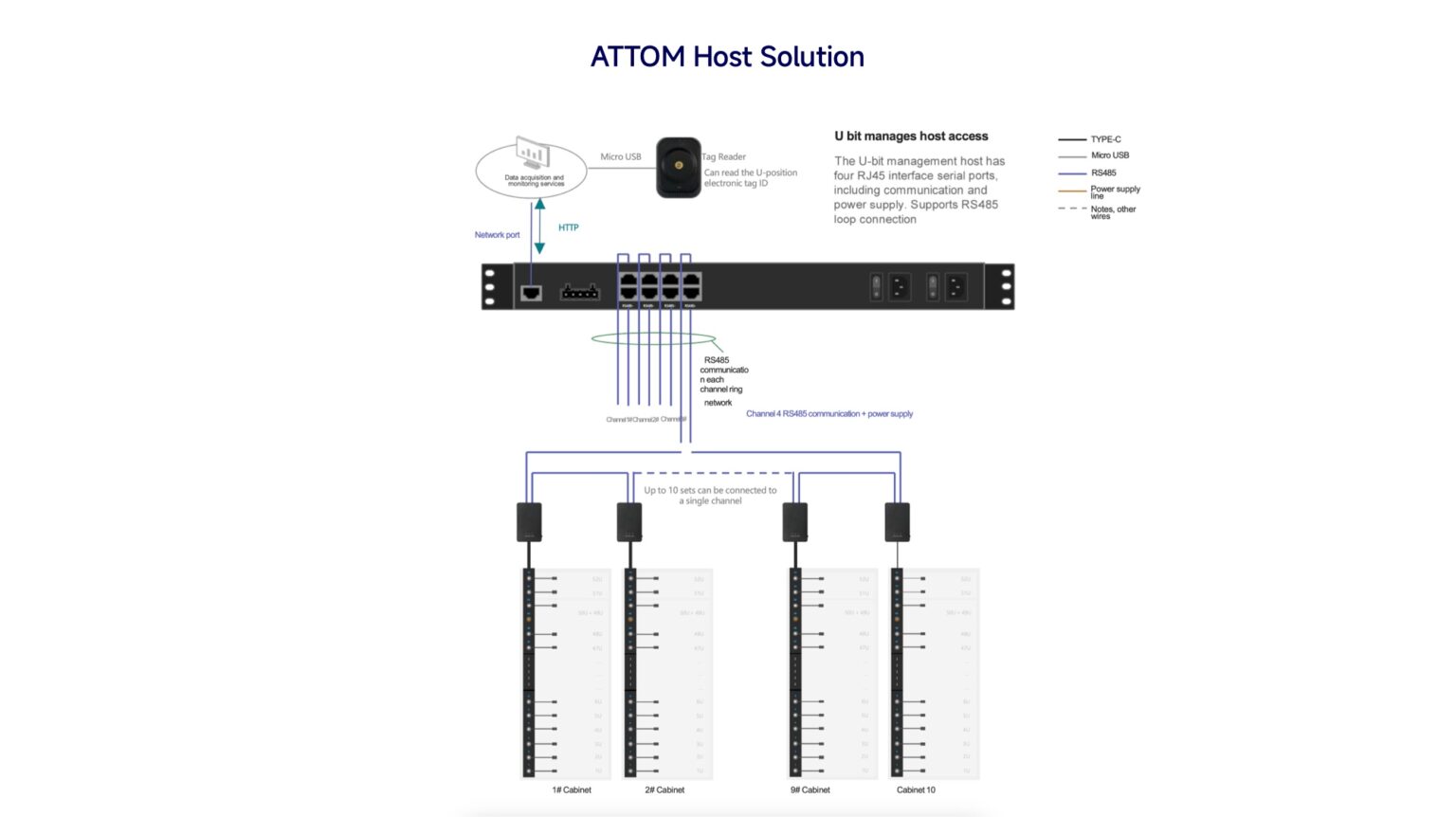

System Topology Diagram
The U-position management host features four RJ45 serial ports for communication and power supply, along with RS485 ring connection. If a third-party host cannot supply power to downstream modules, the system can use a dedicated switching power supply module.
Product Components

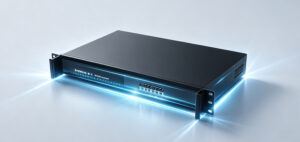

U-position management host
Data aggregation, management, and upload.
U-position detection interface module
Collects asset strip data, uploads information, and controls U-position status.

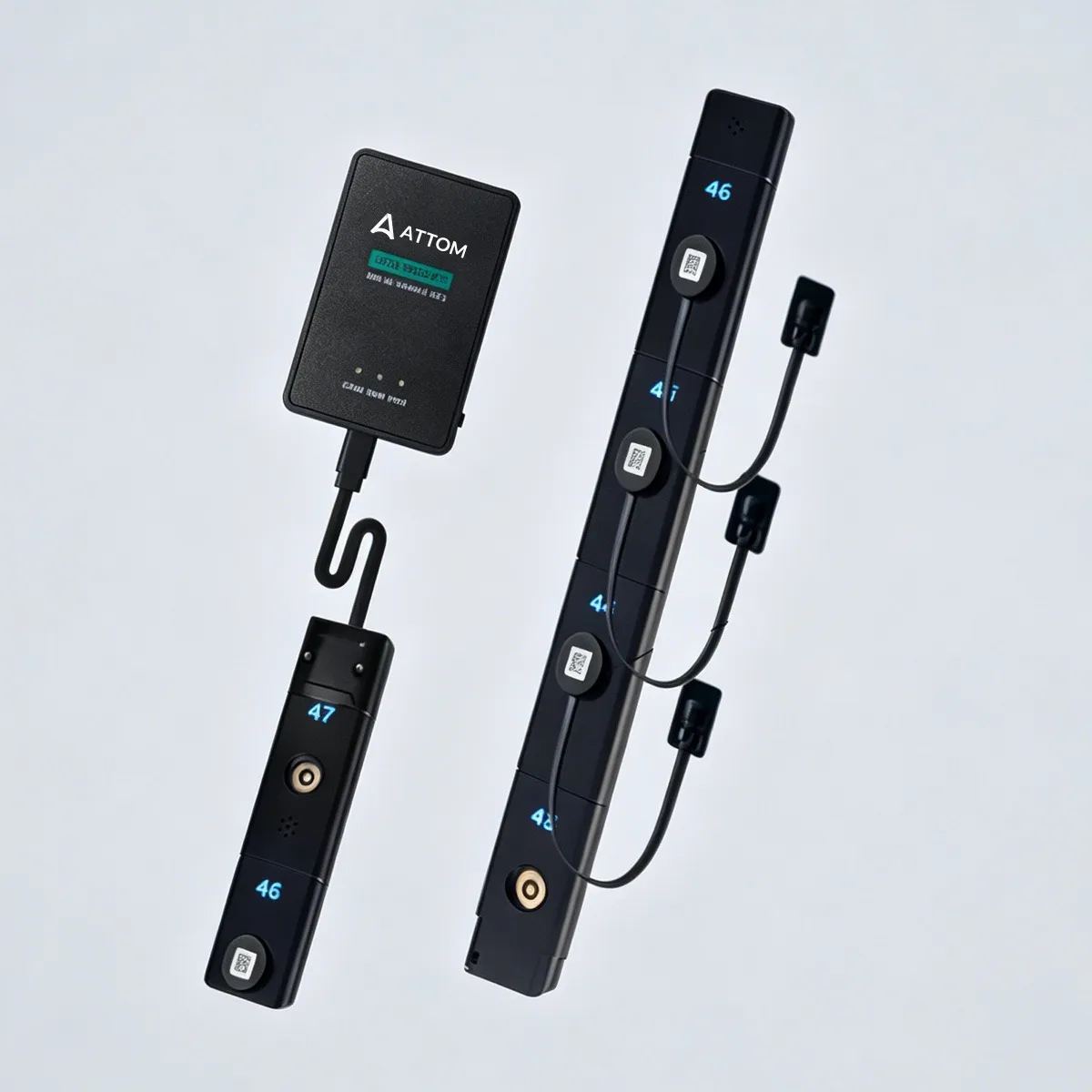

Asset strips
Collect cabinet U-position data, display on-site status, and support temperature and humidity monitoring for individual cabinets.
U-position electronic tags
Assigns each asset a U-position ID, automatically identifies its location, and tracks asset status in real time.
Tag reader
Reads the U-position electronic tag ID.
Switching power supply module
Supports up to 16 channels of DC 12V power output.
